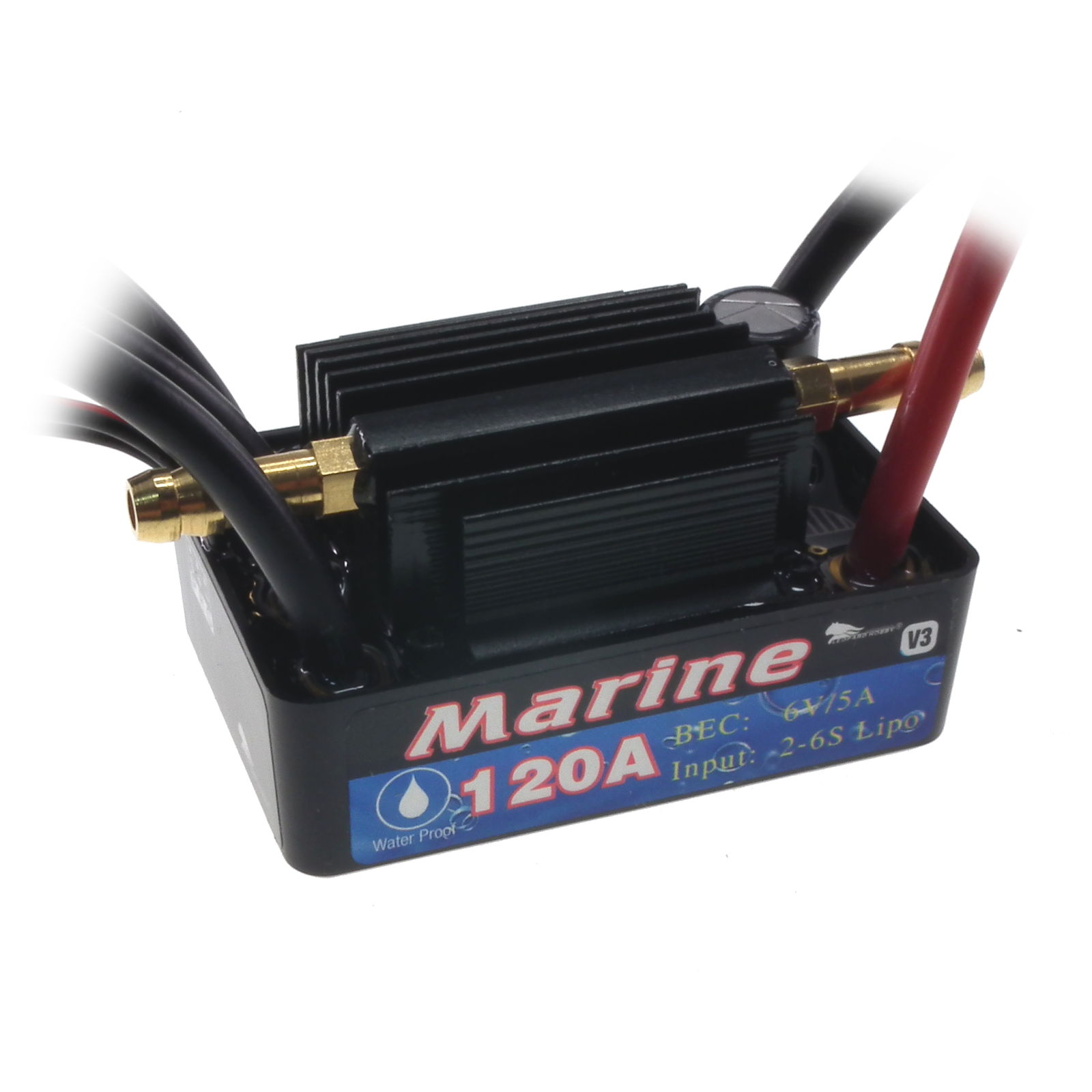

120A Marine V3 Waterproof Brushless Motor Speed Controller (ESC) Leopard Hobby

Availability:In stock

Only 3 left

SKU

Marine120A

£77.50

Excellent waterproof design (rated as IP 67), High quality components, High-efficiency water cooling system, BEC Output: 6V/5A, Input: 2-6S Lipo

Features:

Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions
High quality components have very strong over-current withstanding capabilities
Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable
Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load
The External Programming Port can connect to the LED Program Box for easily setting the parameters of the ESC
The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable

Specifications:

Model

Continuous

Peak Current

BEC Type

BEC Output

LiPo (S)

External

Programming Port

Weight

Water Cooling Pipe Inside/Outside

Size (incl. the Water Cooling Pipe)

Boat Applicable

Marine-120A-V3

120A

720A

Switch Mode

6V/5A

2-6

Available

150g

Ф3.0 / 5.4 mm

68.5 X 39.4 X 32mm

Length<110cm

Programmable Items	Options
Programmable Items	1	2	3	4	5	6	7	8
1.Running Mode	Forward Only	Forward and Backward
2.Lipo Cells	Auto Calculate	2 cells	3 cells	4 cells	5 cells	6 cells
2.Lipo Cells	Auto Calculate	5 cells	6 cells	8 cells	10 cells	12 cells
3. Low Voltage Cut-Off Threshold	Non-Protection	2.8V/Cell	3.0V /Cell	3.2V/Cell	3.4V/Cell
9.Timing	0.00°	3.75°	7.50°	11.25°	15.00°	18.75°	22.50°	26.25°
