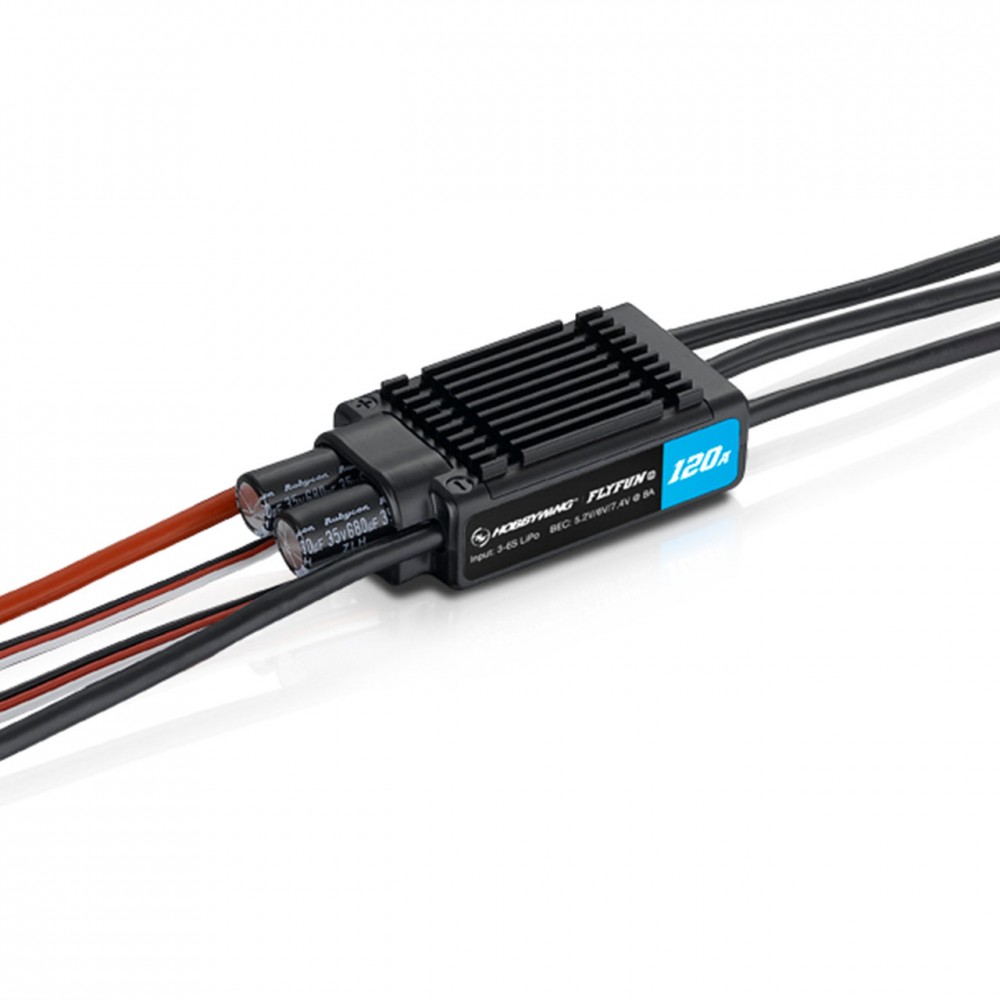

Flyfun 120A Brushless Motor Speed Controller (ESC) Hobby Wing

HOBBYWING FLYFUN 120A ESC V5 3s-8s

Faster and smoother throttle response, better stability and flexibility during flight. Higher driving efficiency.

Features:

1-DEO Technology / Active Freewheeling

2-Soft Start-ups & Reverse Brake

3-High-power BEC

4-Multiple Protections

5-New Design & Great performance

6- Multiple Programmable Parameters

7- The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:

Faster and smoother throttle response, better stability and flexibility during flight. Higher driving efficiency.

Specifications:

Type: Brushless 32 Bit Processor

Cont./Peak Current: 120A/150A

Input: 3-8S LiPo

BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A

Input Wires: Red-12AWG-150mm*1, Black-12AWG-150mm*1

Output Wires: Black-12AWG-150mm*3

Battery Connectors: Must be soldered on

Banana Plugs: 4.0

Transmitter: Supported

LED Program Box: Supported

Program Port: Separate Program Wire

Firmware Upgrade: Not Supported
