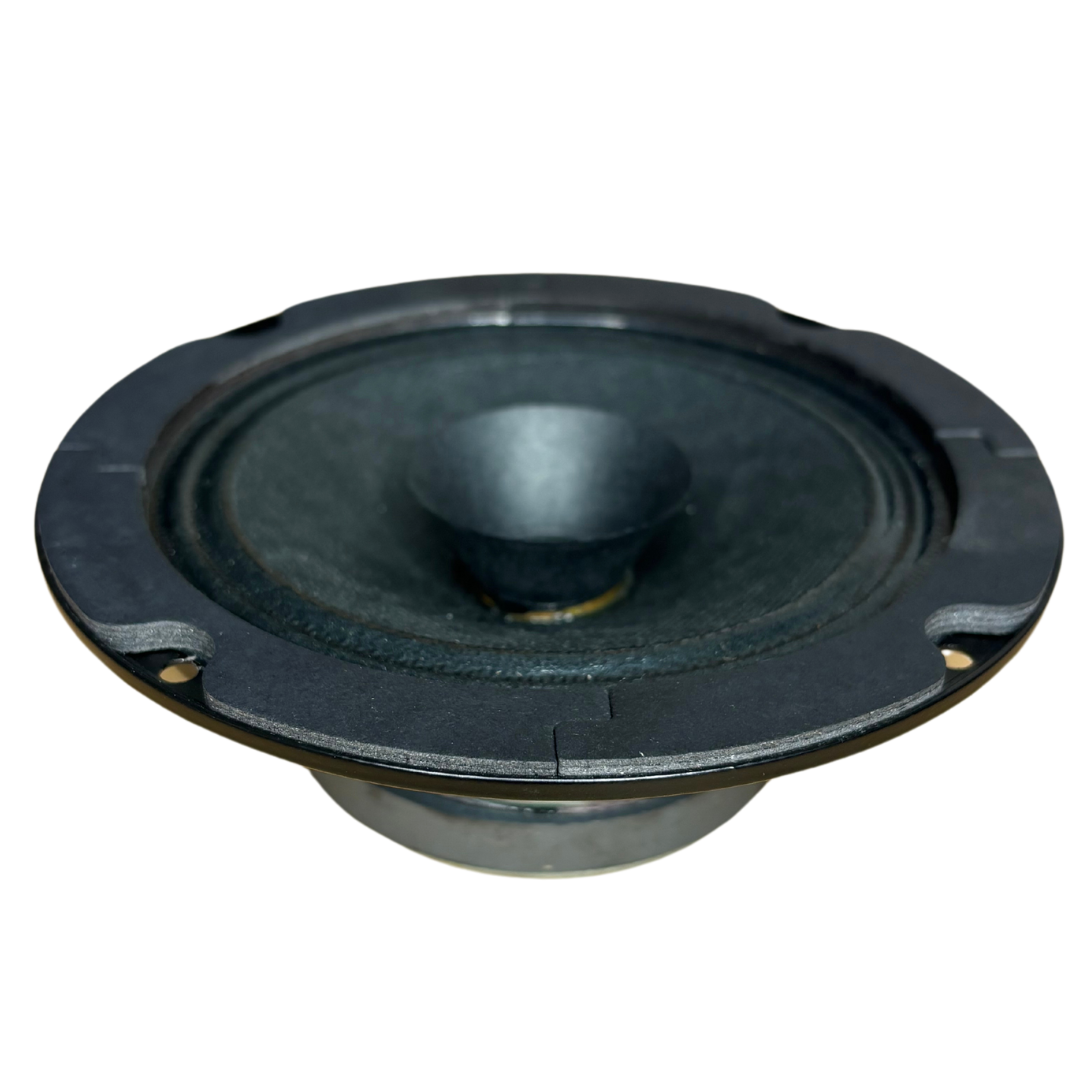

130mm (5") High-Performance Full-Range Round Speaker

BG 13 P

13 cm (5") full-range speaker with tweeter dome. Very evenly spread frequency response and excellent voice reproduction quality. High level of efficiency. For use in larger scale PA arrays or in smaller monitor speakers.

Typical applications

• PA arrays, projection speakers
• Smaller monitor speakers

Technical specifications:

Rated power 20 W

Impedance / 8 Ω

Frequency response (–10 dB) 120 – 20000 Hz

Mean sound pressure level 92 dB (1 W/1 m)

Excursion limit ± 2 mm

Resonant frequency 168 Hz

Height of front pole-plate 3 mm

Voice coil diameter 20 mmØ

Height of winding 4,5 mmØ

Cut-out diameter 110 mm Ø

Terminal 4,8 x 0,8 mm (+)/2,8 x 0,8 mm (–)

Net weight 0,43 kg
