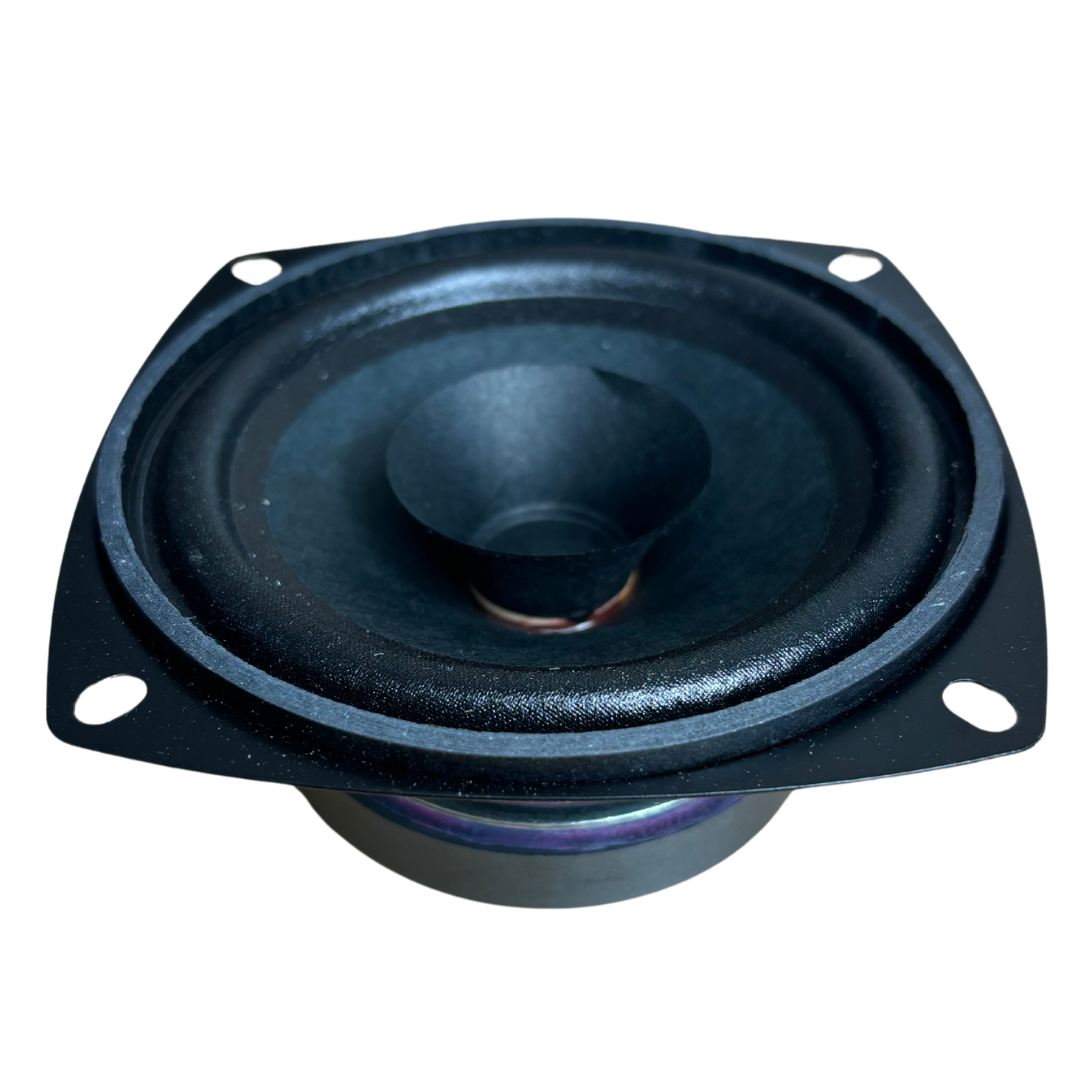

100mm (4") High-Performance Full-Range Square Speaker

FR10

10 cm (4") full-range speaker with good bass reproduction, balanced frequency response and high efficiency. It is especially suitable as a built-in speaker for music reproduction and as a driver for 100 V network column speakers.

Typical applications:

• Network column speakers
• Ceiling-mounted speakers in railway carriages and busses
• Built-in car hi-fi speakers
• Electronic musical instruments

Technical specifications:

Rated power 30 W

Impedance / 8 Ω

Frequency response (–10 dB) 80 – 20000 Hz

Mean sound pressure level 86 dB (1 W/1 m)

Excursion limit ± 4 mm

Resonant frequency 90 Hz

Height of front pole-plate 3 mm

Voice coil diameter 20 mm

Cut-out diameter 100 mm

Terminal 5,2 x 0,5 mm (+)/2,8 x 0,5 mm (–)

Net weight 0.38 kg
