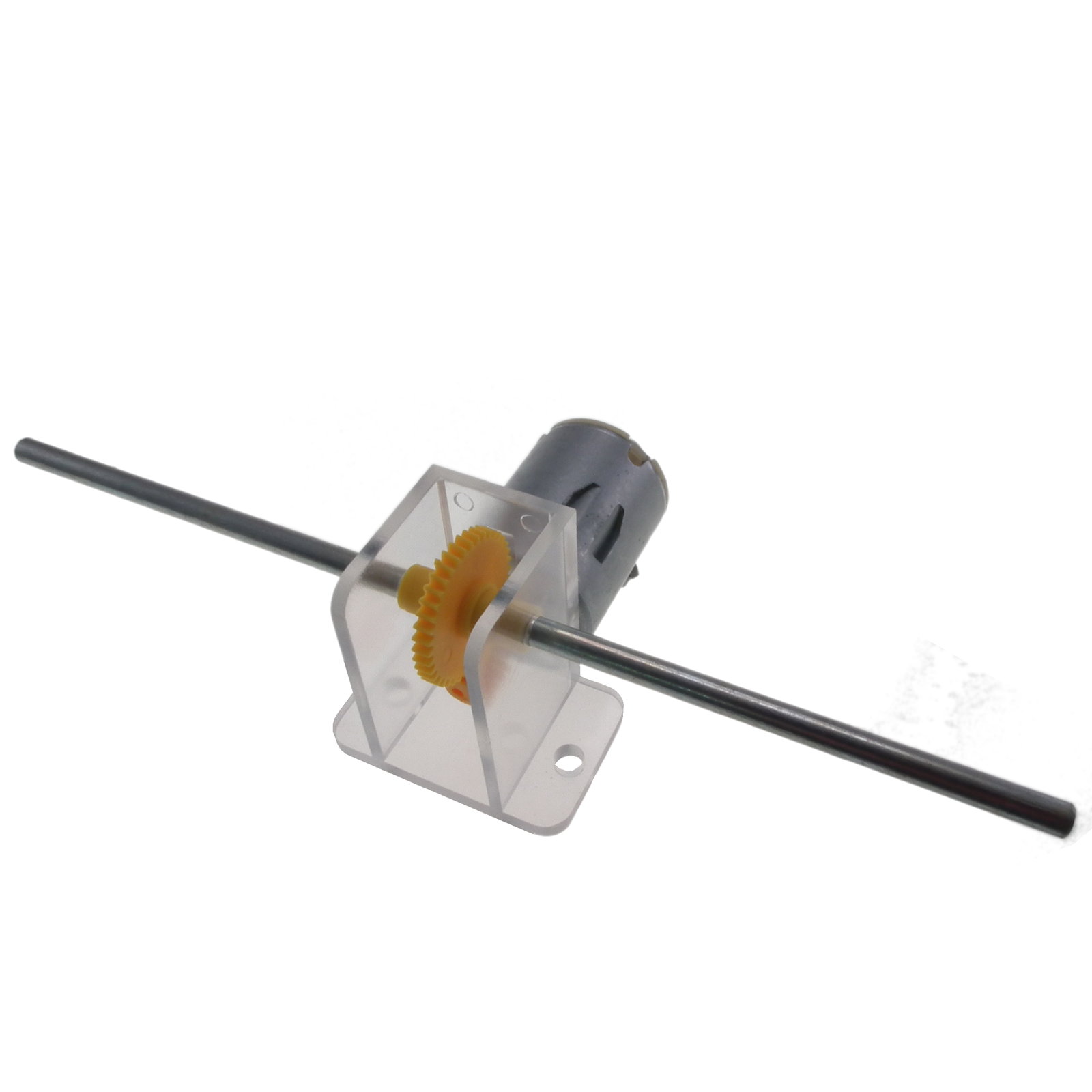

M3G DC Motor (1.5-6V) + Gearbox
Voltage: 1.5~6V; RPM: ; Weight: 85g; Dimensions: 58 x 38 mm
Motor Specifications:
| Type | Voltage (V) | At max efficiency | No load | Weight | ||||||
| M3G | Min | Max | Voltage | Revs (r/min) | Current (A) | Power (W) | Torque (mN-m) | Speed (r/min) | Current (A) | 42g |
| 1.5 | 6 | 3 | 7790 | 1.14 | 1.58 | 19.9 | 9600 | 0.25 | ||
Dimensions: Ø24 x 30.5 mm
Weight: 42g
Shaft Length: 10mm
Shaft Diameter: Ø2mm
Motor + Gearbox Specifications:
Dimensions (Max Length + Width): 58 x 38mm
Weight: 85g
Gear Box Shaft Length: 150mm
Gear Box Shaft: Ø4mm
Gearbox Ratio:
RPM:
M3G data datasheet:
| SKU | M3G |
|---|
