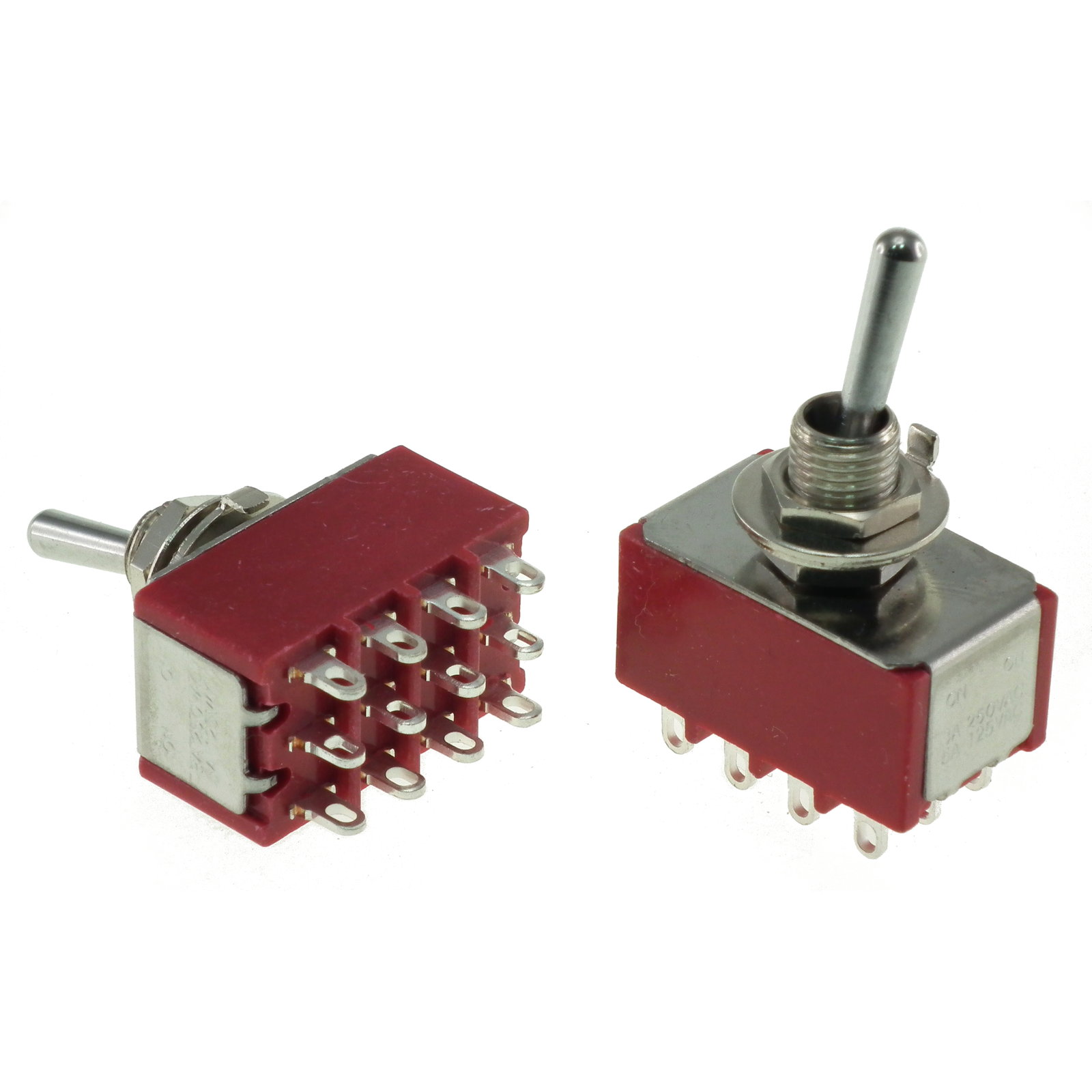

Miniature toggle switch - Four pole
Four pole change over (4PCO)
Rugged and reliable miniature toggle switches, with a long mechanical and electrical life cycle.
| Rating: | 5A 120VAC/28VDC 2A 240VAC |
| Dielectric Strength: | 1500V RMS |
| Temperature range: | -30° to +85°C. |
| Insulation resistance: | >1000MΩ |
| Contact resistance: | <10mΩ maximum initial |
| Electrical life: | 50,000 make/break cycles at full load |
| Case material: | Diallyl phthalate (DAP) |
| Contact material: | Coin silver, silver plated |
| Panel cutout 6.35mm |
| SKU | sw307 |
|---|---|
| Colour | Black |
