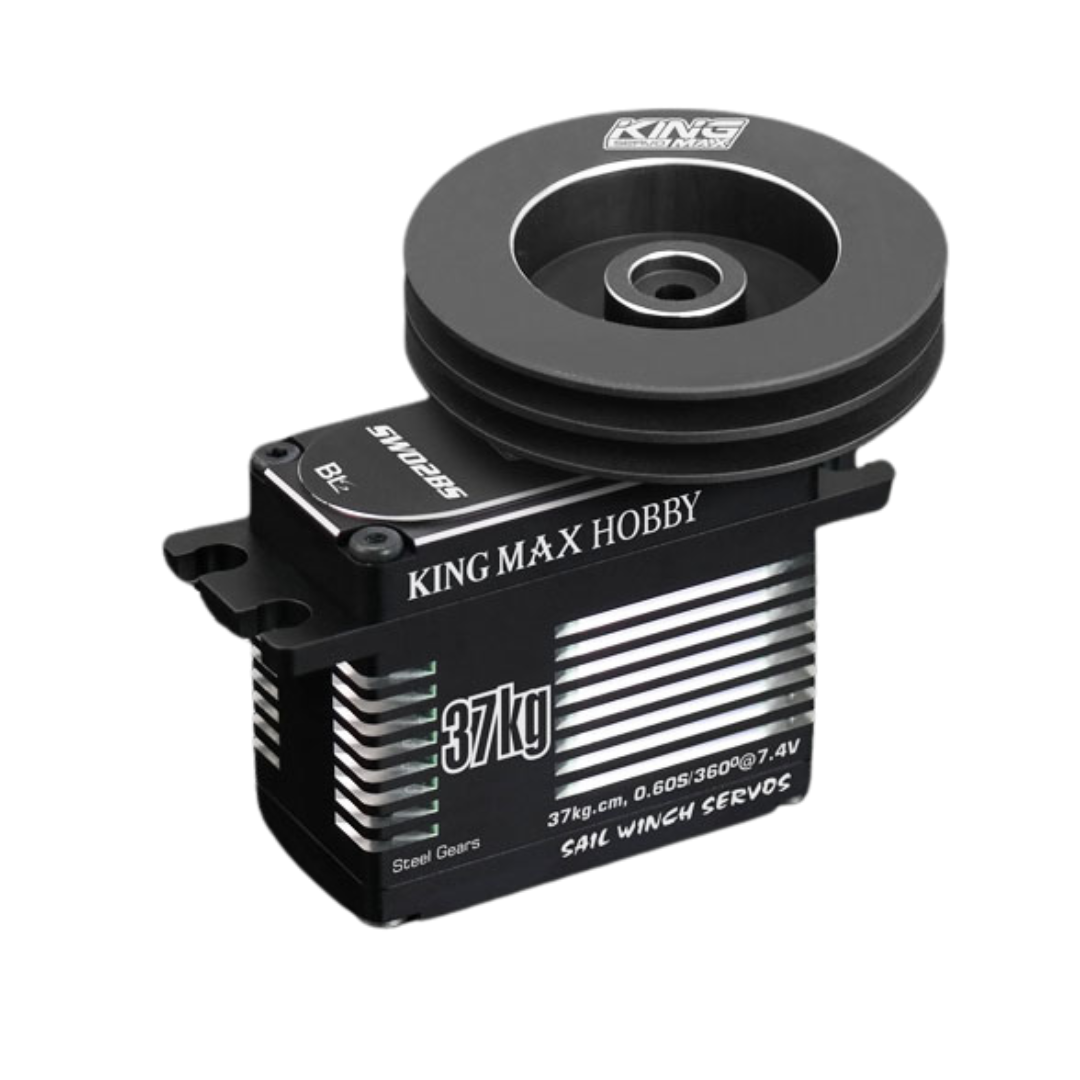

Features :

• High performance programmable digital standard sail winch servo for competitions
• Full CNC aluminium hulls and structure
• Suitable for the class same as IOM
• High quality brushless motor
• Durable steel gears
• Dual ball bearings
• Super long life
• Waterproof

Specifications :

• Gear：Steel gear
• Spline：Standard 25T
• Motor：Brushless motor
• Bearing：2BB
• Dead band：2μs default
• Waterproof：Yes
• Operating Voltage：DC5.0~8.4V
• Rated working voltage：DC 7.4V
• Working frequency：1520μs/330hz
• Working temperature：-10℃~+50℃
• Storage temperature：-20℃~+60℃

Turn: 1~8T(programmable)

Operating Speed(5.0V):0.96sec/360 degrees

Operating Speed(6.0V):0.78sec/360 degrees

Operating Speed(7.4V):0.60sec/360 degrees

Operating Speed(8.4V):0.54sec/360 degrees

Stall Torque(5.0V):24kg.cm(333.36oz/in)

Stall Torque(6.0V):29kg.cm(402.81oz/in)

Stall Torque(7.4V):37kg.cm(513.93oz/in)

Stall Torque(8.4V):39kg.cm(541.71oz/in)

Dimensions: 40*20*36.5mm /1.56*0.78*1.42in

Weight:77g(2.71oz)

Connector Wire Length:JR320mm(12.48in)
