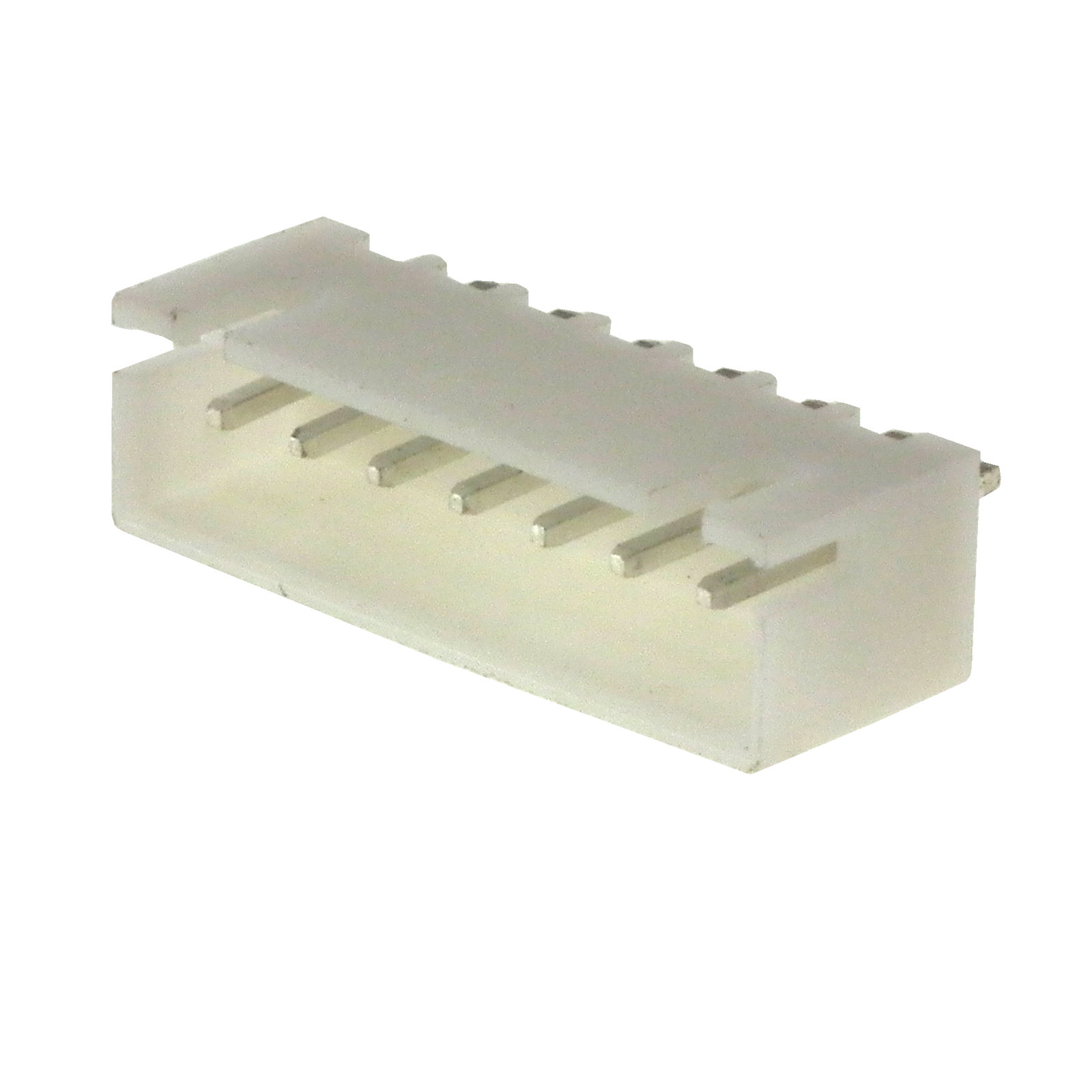

JST-XH Female Connector 7 pin

This Lipo Battery Balance Charger Female JST-XH (7 pin) Connector. These Connectors are Ideal for all types of R/C Lipo/LiFe 6-Cell Batteries Balance Leads.

Specifications:

• Current rating: 3A AC, DC (AWG 22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 V AC/minute
• Pin Spacing: 2.5 mm
• Material: Plastic (Nylon)
• Color: White
