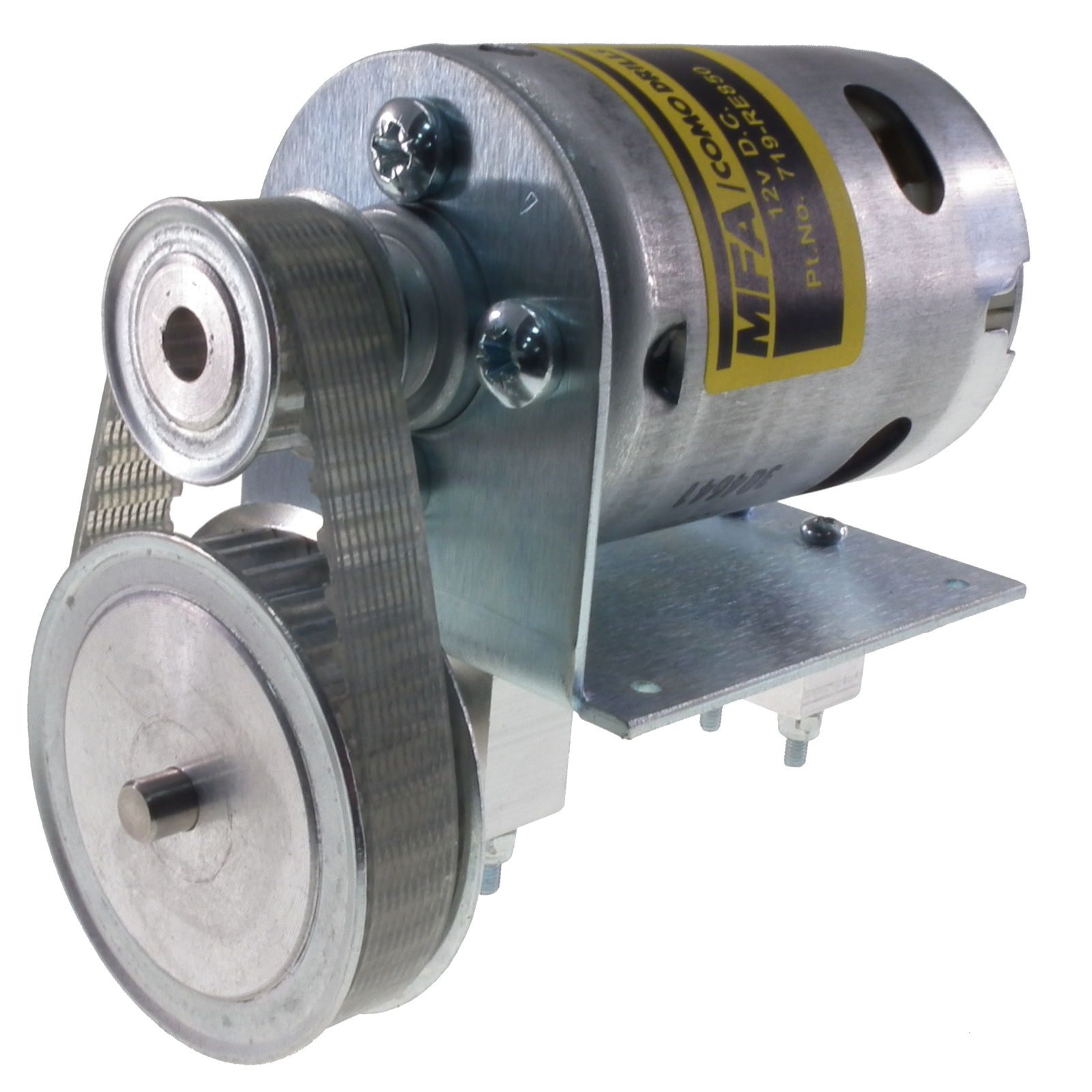

850 12V DC Motor with 2.1:1 belt Reduction drive MFA

This unit has been developed to meet a requirement for heavy duty high torque applications combined with relatively low power consumption.

The unit is powered by MFA/Como Drills 850 series 12v d.c. 3 pole motors, with heavy duty carbon brush gear and double ended 6mm drive shaft. The motor is mounted on a rugged 1.5mm steel right angle bracket. The 2.1:1 reduction is achieved via two precision aluminium timing pulleys utilising a high quality toothed timing belt. The final drive is delivered through two block mounted precision ballraces with a 6mm keyed steel output shaft.

Motor Specifications:

Dimensions: 83.6 x Ø51.8 mm (without bracket and shaft)

Weight: 595g

Shaft Length: 13.2mm

Shaft Dia: 6.35mm

Geared Motor Specifications:

Dimensions: 115 x 62 x 95mm

Weight: 745g

Shaft Diameter: Ø6mm (5.7 indent mm)

Gearbox Ratio: 2.1:1

RPM: 3957 (12v) At max efficiency

Torque: 1380g.cm

Note: Motor speeds may vary by (+) or (-) 12.5%
