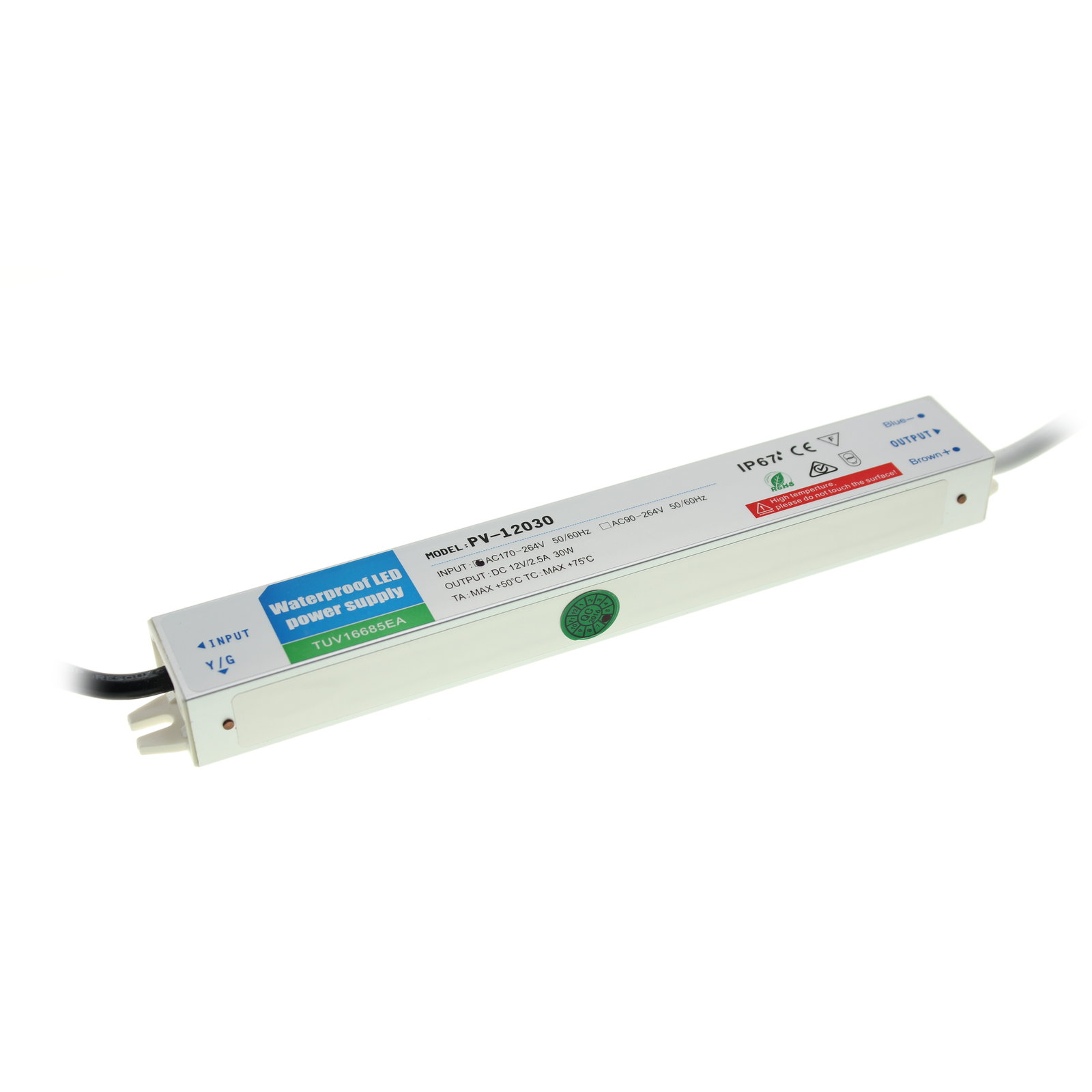

12V 2.5A waterproof installation mains power supply
Suitable for LED lighting and LED sign applications; Output: DC 12V / 2.5A 30W;
Features:
- Suitable for LED lighting and LED sign applications
- Protections: Short circuit / Overload / Over Voltage / Over Temperature
- IP67 design for indoor or outdoor installations
- Efficiency: more than 80%
- 100% full load burn-in test
- Storage temperature: -40~+80°C
- Operating temperature: -25~+45°C
- Certificate: CE, ROHS
- MTBF: Min 250Khrs
| Specification | |
| Model | PV-12030 (12V, 2.5A, 30W) |
| DC Voltage | 12±0.5VDC |
| Rated power | 30W |
| Rated current | 2.5A |
| Voltage | 170-250VAC |
| Frequency | 47 ~ 63 Hz |
| AC Current | 0.22A |
| Efficiency (Typ.) | more than 80% |
| Overload | 20% exceed is allowing |
| Short Circuit | Auto recovery |
| Over Voltage | <255V |
| Over temperature | <85°C |
| Cooling | By convection |
| Withstand voltage | 2200VAC |
| Dimension/Weight | 200*30*20mm/260g |
| Packing/Carton Size | 50pcs/carton / 34*24*18.5cm |
| Cable | 0.75sq.mm. VDE wire 200mm |
| Housing Material | Aluminum |
| CE Safety Standard | Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
| EMI conduction & radiation | Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 |
| Harmonic Current | Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
| SKU | PSU12V2A5 |
|---|---|
| Colour | Black |
