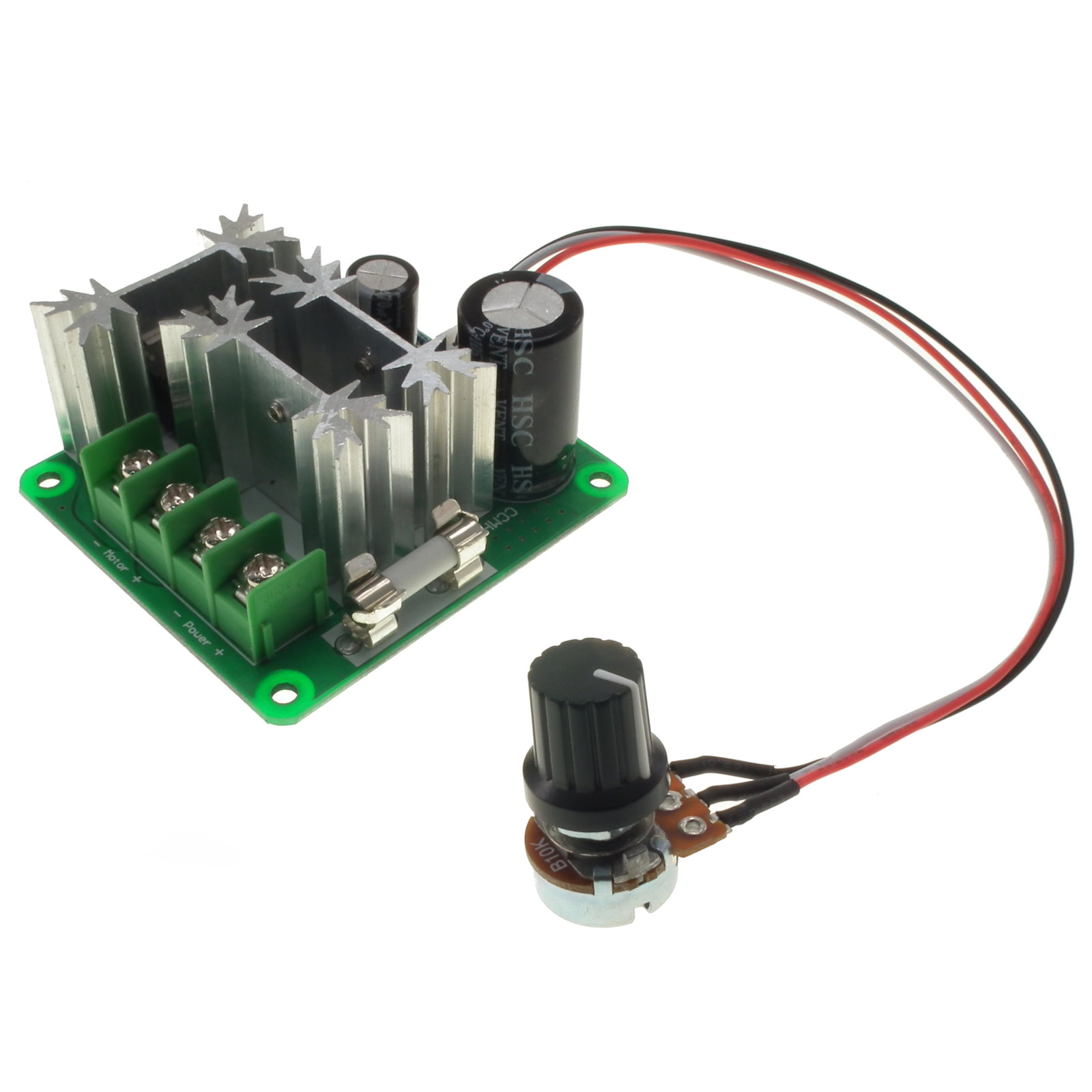

15A Stand Alone DC Brushed Motor Speed Controller
Input voltage: DC 6V-90V; Maximum output power: 1000W; Rated current: 15A
This DC Brushed Motor Speed Controller allows you to control the speed of a Brushed DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The speed controller can provide a continuous current of 15A to a DC motor or other DC load.
- Input voltage: DC 6V-90V
- Maximum output power: 1000W
- Rated current: 15A
- Overload and short circuit current 15A max
- PWM frequency: 16kHz
- Duty Cycle adjustable: 0-100%
- Operating temperature range: -20°C +40°C
- 20A fuse protection with reverse power supply and over-voltage protection
- Speed can also be adjusted with an external 0-5V signal
Weight: 76g
NOTE: This can NOT be used for BRUSHLESS motors.
| SKU | PWM-ESC-10A |
|---|---|
| Colour | Black |
